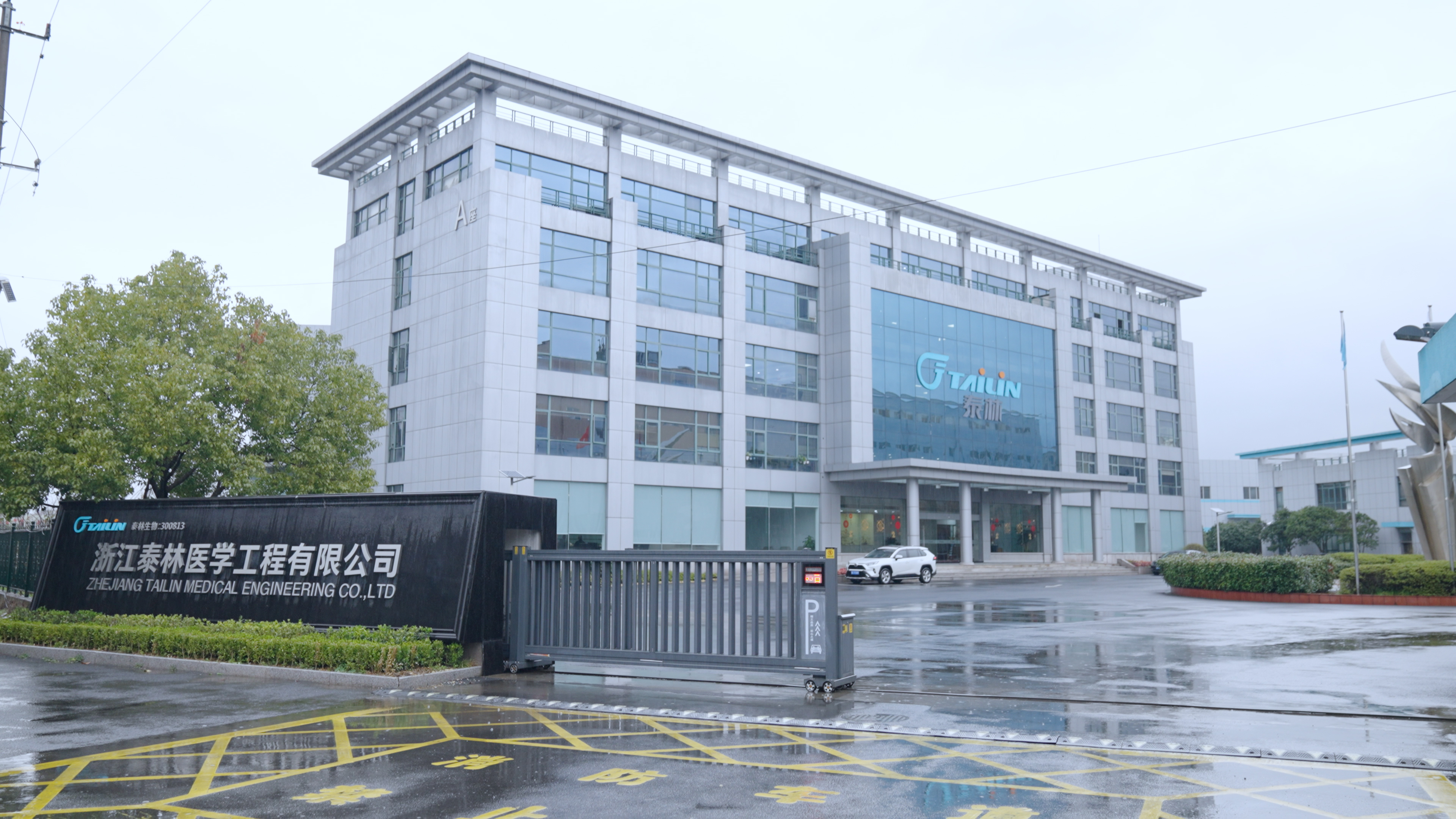

Tailin Medical Engineering is a wholly-ownzed subsidiary of the listed company Tailin Bio, which is committed to the research and development and production of high-end equipment and consumables in the fields of pharmaceutical engineering, cellular engineering, medical engineering, bio-environmental engineering, etc., and provides systematic solutions for the field of biomedical engineering.


Customer Pain Points


With the continuous growth of business demand, coupled with the limited efficiency of manual material transport, the traditional transfer mode can no longer quickly adapt to and meet the current business requirements.

Based on the above pain points, ThaiLin Medical Engineering urgently needs to deploy intelligent solutions to improve the efficiency of warehouse material transfer, in order to meet the rapid response and continuous supply of the assembly line.


SEER Robitics Solution

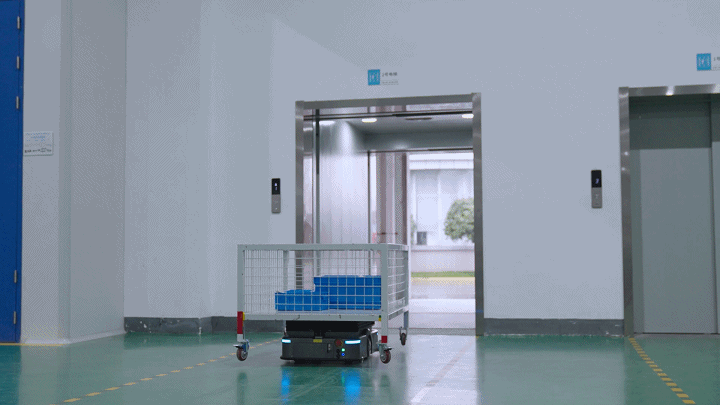

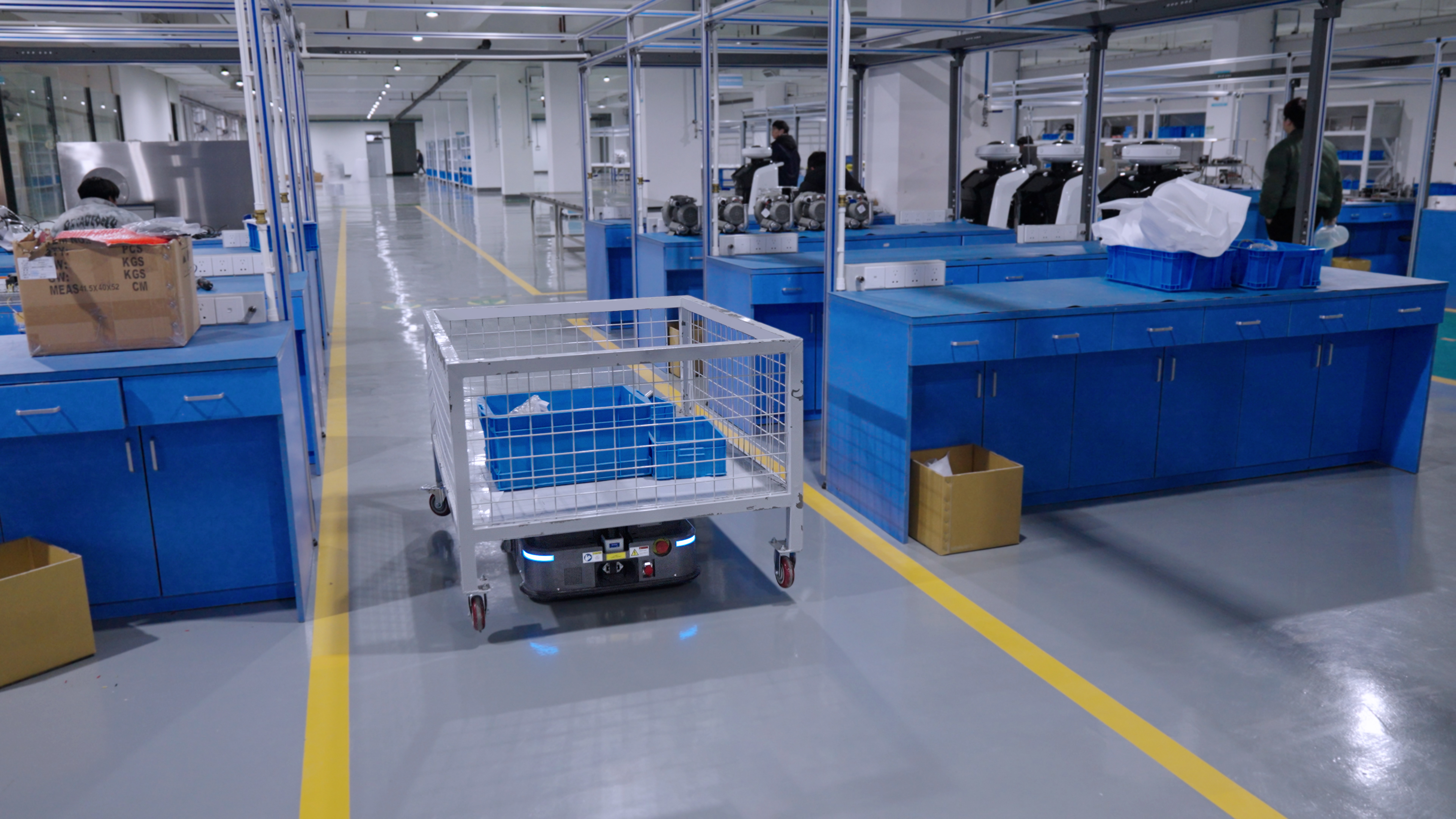

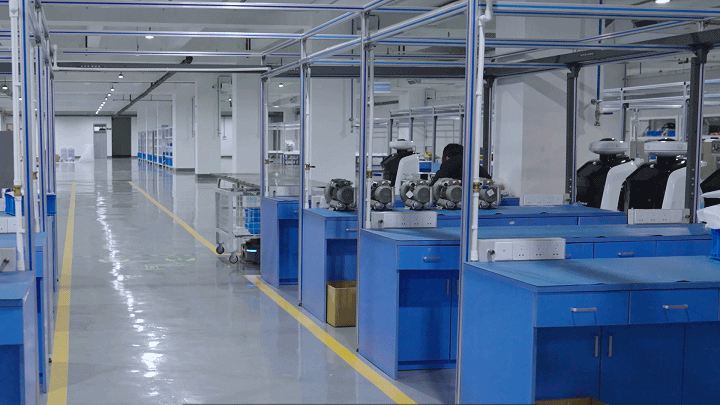

In ThaiLin medical engineering factory, the 4th floor is the storage area for warehouse materials, and the 1st and 2nd floors are the assembly workshops. Mobile robots need to take the lift autonomously to transport the materials from the 4th floor to the corresponding production lines of the assembly workshops on the 1st and 2nd floors respectively.

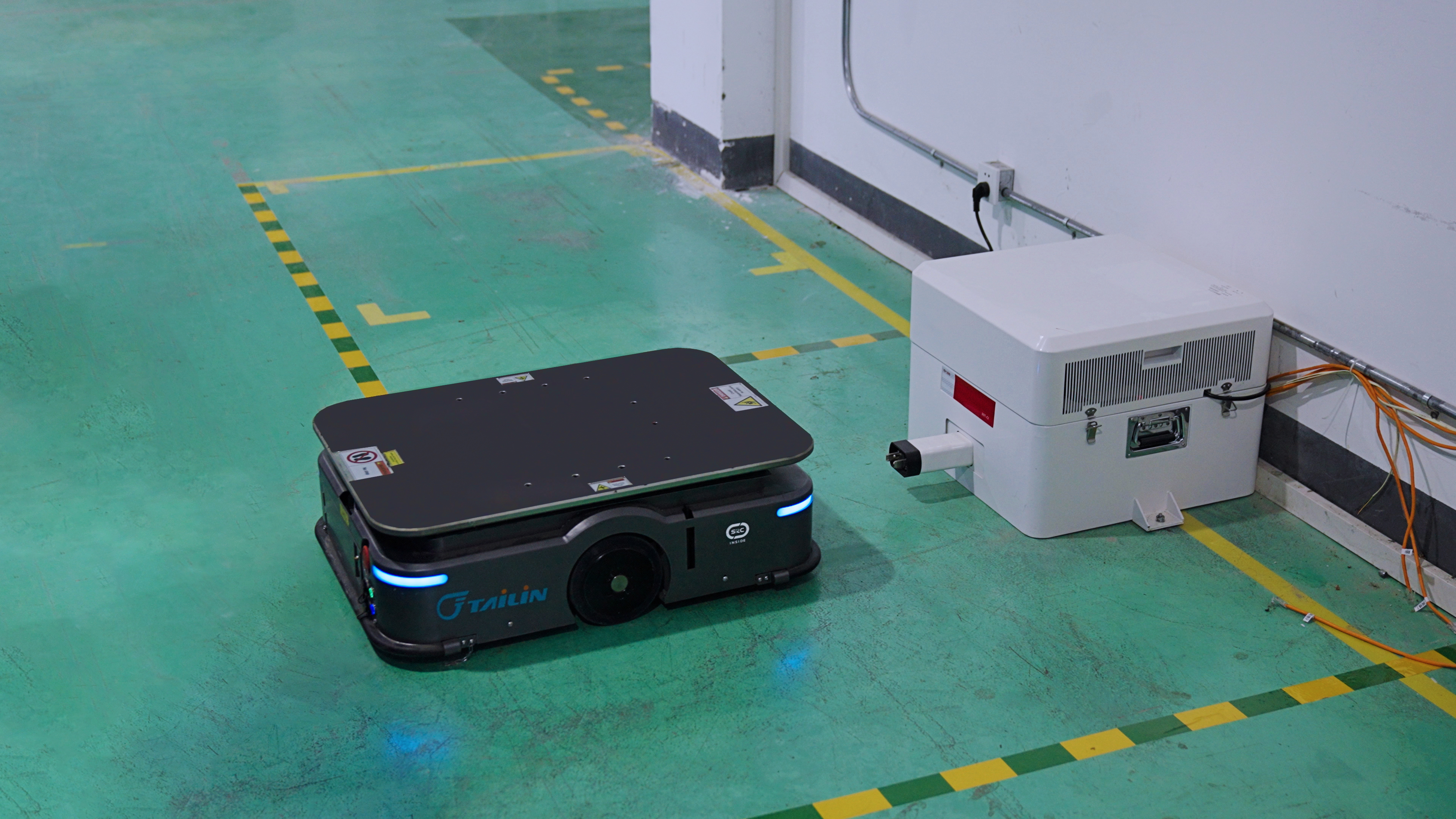

Through in-depth research, Tailin Medical Engineering finally chose SEER Robitics Laser SLAM latent jacking handling robot AMB-300JZ, the product's small and flexible characteristics greatly reduce the difficulty of on-site application, based on the collaborative control of RDS robots dispatch system, to achieve the intelligence and automation of the material conveyance of the cross-floor transport, and significantly improve the efficiency and accuracy of the material conveyance.


Programme highlights

Intelligent Algorithm, Fearless of Complex and Variable Scenarios


AMB-300JZ internal algorithms are fully upgraded, supporting high dynamic environment positioning and navigation, slippage detection and correction, two-dimensional code secondary positioning, hybrid navigation, auto-following, and fifth-order Bessel optimised paths, which can easily cope with the complex working environment inside the Tailin medical engineering factory.

In addition, based on the actual production impact, the mobile robot running route environment may exist variability, in order to AMB-300JZ can still maintain safe and stable operation in the changing environment, SEER Robitics for ThaiLin medical factory customised map automatic update function, regular automatic scanning to build the map, without too much human intervention, automatically complete the map of the uncovered area.

All-round material shelf recognition, automatic identification and correction of deviation

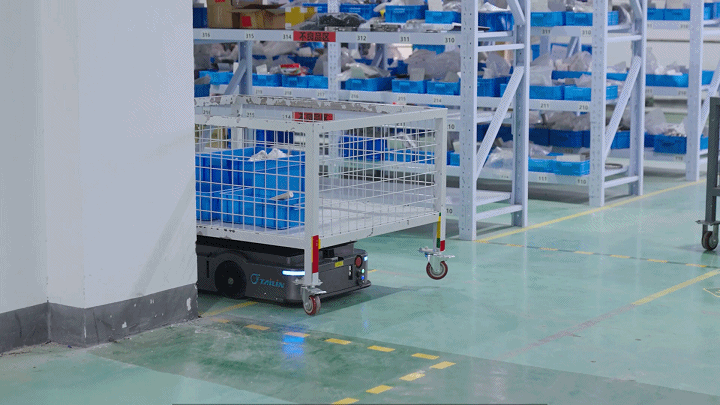

AMB-300JZ supports all-round shelf recognition and sets up shelf recognition and deviation correction function, which identifies the legs of materials and drills accurately into the bottom of the shelves for lifting and transporting.

Seamless docking with MES system, unified and cooperative operation

The RDS unified resource scheduling system can be seamlessly connected with the MES system of Tailin Medical Engineering to realise the automatic dispatch of tasks and the automatic execution of mobile robots, and support customers to initiate tasks through the MES system for the monitoring of the whole process.

Based on the integrated evaluation function, RDS supports the global optimal task assignment scheme from the bottom, adjusts the frequency of material distribution at any time according to the production situation, and automatically matches the lift call tempo of the mobile robot to ensure that the lift is already in place and open when the robot arrives, so as to ensure timely distribution of the material and improve the production tempo.
